High Heat Transfer Efficiency

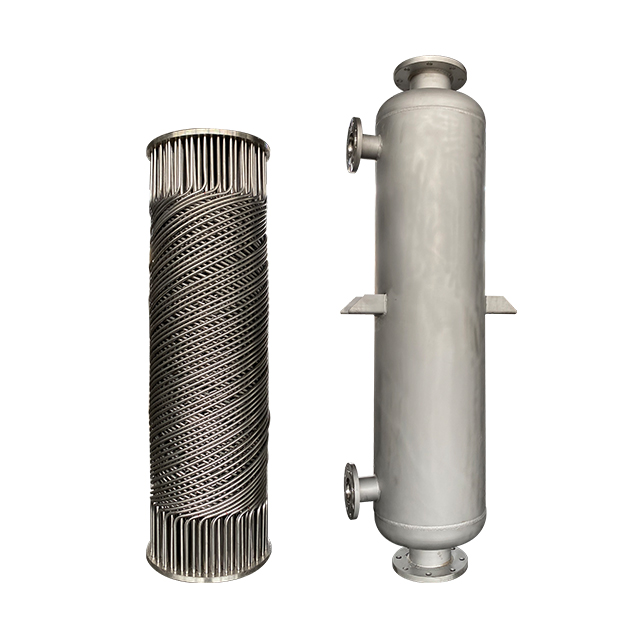

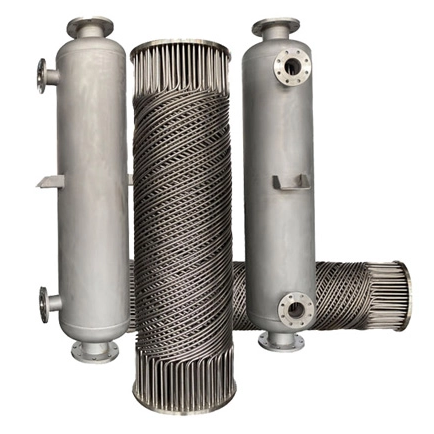

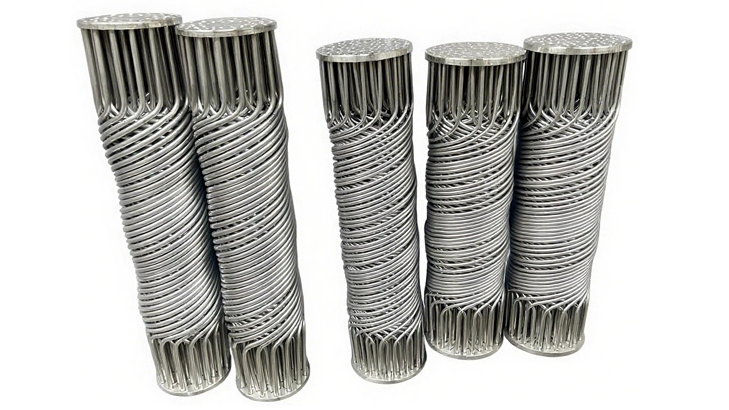

The precision-engineered helically coiled tube bundle creates intense turbulence as the medium flows through both the tube side and shell side, significantly increasing heat transfer per unit area compared to conventional straight-tube heat exchangers. This delivers high heat exchange efficiency and high condensation recovery rate.
Extended Service Life
The unique helically coiled tube bundle features elastic characteristics, which greatly reduces the pull-out stress between the heat exchange tubes and the tube sheet caused by temperature differences or vibration, thereby extending service life.
Compact Footprint
Maximizes heat transfer area per unit volume. Under identical operating conditions, it occupies only one-fifth the volume of traditional heat exchangers. It can be directly connected to pipelines, offering a small footprint with low installation and maintenance costs.
Low Fouling Tendency
Liquid phase design velocity reaches up to 5.5 m/s, resulting in low scaling deposition rate and reduced fouling tendency.
Multiple Material Options
304 & 316 stainless steel, 2205 duplex stainless steel, titanium, Hastelloy (high temperature and pressure resistance, corrosion resistance, extended service life).
Low Operating Cost, Energy Saving
Thanks to high heat transfer efficiency, heating applications save thermal energy. In condensation applications, it increases recovery rate or reduces refrigerant consumption.
Note:As the heat exchange tubes are helically coiled with small diameters, unclean media or easily crystallized materials are more likely to cause blockage in the heat exchanger.
